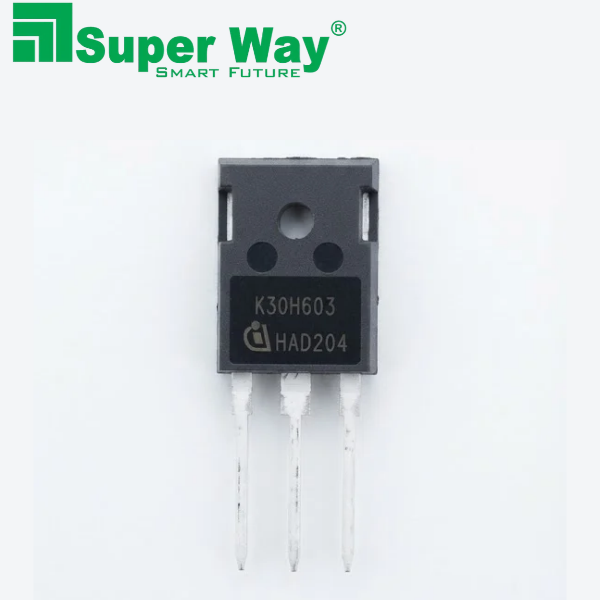

K30H603 IGBT

Description

The K30H603 IGBT Power Transistor is a semiconductor component designed for electronic switching and power conversion applications. The marking K30H603 corresponds to the model IKW30N60H3. This device belongs to a high-speed switching IGBT series and is designed for circuits that require controlled switching of electrical power. It may be used in compatible power electronic equipment where its electrical characteristics meet the circuit requirements.

An Insulated-Gate Bipolar Transistor, commonly known as an IGBT, is a power semiconductor device used to control current through an electronic circuit. It combines a voltage-controlled gate with the current-switching characteristics required in power electronics. IGBTs are commonly found in inverter circuits, switching converters, welding equipment, and other electronic systems that manage electrical energy.

The K30H603 marking helps identify the component during product selection, inventory management, repair, and replacement. The corresponding IKW30N60H3 model is documented with a collector-emitter voltage rating of 600V and a collector current rating of 30A under specified conditions. These values describe the identified device and should not be interpreted as unrestricted operating limits. Actual operating capability depends on temperature, cooling, switching conditions, and the manufacturer’s datasheet requirements.

The device includes an integrated antiparallel diode. In suitable power switching circuits, this diode provides a path for current under appropriate operating conditions. Its recovery characteristics can influence the switching behavior of the circuit. The IGBT and diode must therefore be considered together when checking component suitability for a particular electronic design.

The K30H603 IGBT uses a PG-TO247-3 package. Package identification is important when checking the physical fit, mounting arrangement, lead spacing, and terminal connections of a replacement component. A transistor with a similar appearance may have a different pin configuration or different electrical characteristics. Always compare the full component identification and datasheet before installation.

IGBTs are widely used in power conversion systems because they can switch electrical current in response to a gate control signal. Their operation depends on the gate-drive circuit and the surrounding electronic components. The K30H603 device is documented for applications that include welding converters, uninterruptible power supplies, and converters operating at high switching frequencies. Its suitability for a particular application must be confirmed against the design requirements.

In inverter welding machines, power semiconductor components may be used in the switching stage that controls energy transfer. The IGBT operates alongside control boards, gate-driver circuits, protection components, and other power electronics. Selecting the correct transistor is important because differences in switching behavior, current capability, voltage rating, and package configuration can affect equipment operation.

The 600V collector-emitter rating is an important consideration when evaluating the K30H603 for a power circuit. The component must be suitable for the voltage conditions that occur during normal operation and switching. Voltage transients and other circuit conditions must also be considered. A 600V rating by itself does not establish compatibility with every circuit operating at a lower voltage.

The 30A collector current rating must also be understood in the context of the datasheet’s specified conditions. The current a device can carry depends on case temperature, junction temperature, heat dissipation, switching losses, and the duration of operation. The rated current should not be treated as a guaranteed current level in every installation. Proper circuit design and thermal management are necessary to keep the component within its specified operating limits.

Gate-drive compatibility is another important factor when selecting an IGBT. The gate-drive circuit must provide suitable control signals for the selected device. Gate voltage, switching frequency, turn-on and turn-off behavior, and switching losses can influence performance. When choosing a replacement, compare these parameters rather than relying only on the model marking or voltage rating.

Thermal management is essential for power semiconductor components. An IGBT produces heat during conduction and switching, and excessive temperature can affect operation or damage the device. The heatsink, thermal interface, mounting pressure, airflow, and operating environment all contribute to temperature control. The equipment must provide suitable cooling based on the actual electrical load and operating conditions.

When selecting the K30H603 for maintenance or replacement, inspect the marking on the original component and compare it with the corresponding model documentation. Confirm the collector-emitter voltage, current rating, package, terminal arrangement, gate requirements, switching characteristics, and diode specifications. If the original component carries additional markings or suffixes, check those details as well before deciding whether a replacement is suitable.

Using a component with a similar name does not automatically guarantee compatibility. Different IGBTs may have different switching losses, gate requirements, thermal limits, and diode characteristics. Incorrect selection can cause malfunction or damage to the surrounding circuit. Reliable component identification and datasheet verification are therefore important steps in electronic repair and product selection.

For product identification, the name K30H603 IGBT Power Transistor provides a clear description of the component. Including the K30H603 marking and corresponding model reference in product records can help distinguish it from other IGBT devices. Any technical specifications included in a product listing should match the exact component being supplied and should be supported by appropriate documentation.

The K30H603 IGBT may be suitable for compatible power switching and conversion circuits when the verified specifications meet the application’s requirements. Its documented features include a 600V collector-emitter rating, a 30A collector current rating under specified conditions, a PG-TO247-3 package, and an integrated antiparallel diode. These characteristics should be evaluated together when selecting the component for a circuit.

Before installation, the equipment must be disconnected from its power source, and stored electrical energy must be handled using appropriate safety procedures. Power electronic equipment may contain hazardous voltages even after being switched off. Installation and testing should be performed by a qualified person following the equipment manufacturer’s instructions and the component datasheet.

In summary, the K30H603 IGBT Power Transistor is the marking associated with the IKW30N60H3 model. It is designed for compatible high-speed switching and power conversion applications. Confirm the complete model identification, electrical ratings, package, and circuit requirements before using the component in a new design or as a replacement part.
