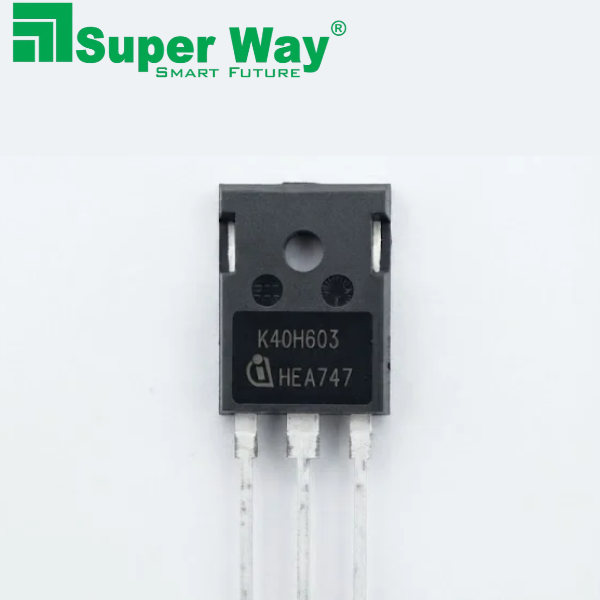

K40H603 IGBT

Description

The K40H603 IGBT Power Transistor is a power semiconductor component used in electronic switching and power conversion circuits. The marking K40H603 corresponds to the IKW40N60H3 device. This IGBT is designed for high-speed switching applications where controlled switching of electrical power is required. It may be considered for compatible power electronics equipment, including suitable welding converter circuits and other electronic power conversion systems.

An Insulated-Gate Bipolar Transistor, commonly known as an IGBT, is a semiconductor device that combines voltage-controlled gate operation with the current-handling characteristics needed for power switching. IGBTs are used in electronic circuits that control electrical energy by switching current through a load. The suitability of a particular IGBT depends on the circuit design, switching conditions, electrical ratings, thermal management, and gate-drive requirements.

The K40H603 marking helps identify the component when checking an existing circuit or selecting a replacement part. For accurate identification, it is important to match the marking with the corresponding device documentation rather than relying on appearance alone. The associated model IKW40N60H3 is documented as a high-speed switching IGBT with an integrated antiparallel diode. This diode is part of the device’s power switching arrangement and supports current flow under appropriate circuit conditions.

The documented collector-emitter voltage rating for the IKW40N60H3 is 600V. Its datasheet also lists a 40A collector current rating under a specified case-temperature condition. Current capability changes with operating temperature and other conditions, so the 40A figure should not be interpreted as a universal current rating for every installation. The exact operating limits must be checked against the manufacturer’s datasheet and the requirements of the target circuit.

The component is identified with a TO-247-3 package. Package identification is important when checking mechanical compatibility, mounting arrangements, lead spacing, and electrical connections. Even when another component appears physically similar, its pin configuration and electrical characteristics may differ. Before replacement, verify the package and terminal layout using the correct datasheet.

IGBTs are commonly used in power conversion systems because they can switch electrical power in a controlled manner. Depending on the circuit design, they may be used in inverter stages, switching converters, motor control equipment, and other power electronic systems. The IKW40N60H3 documentation specifically identifies applications such as welding converters, uninterruptible power supplies, and high-switching-frequency converters. Actual compatibility depends on the design and operating conditions of the equipment.

In welding equipment, power semiconductor devices can form part of the inverter or converter section that controls energy transfer. An IGBT in this section switches according to signals from the associated control and gate-drive circuitry. The selected component must match the electrical and switching requirements of the equipment. The K40H603 should therefore only be considered for a welding machine when its full identification and specifications match the original component or the approved circuit design.

The switching performance of an IGBT depends on factors such as gate-drive voltage, switching frequency, load current, circuit layout, and the surrounding components. The associated antiparallel diode also has relevant recovery characteristics that affect circuit behavior. These factors should be considered during component selection and repair. A matching voltage rating alone is not sufficient to establish that two IGBTs are interchangeable.

Thermal management is another important consideration in power electronic circuits. IGBTs generate heat while conducting and switching current. The mounting surface, heatsink arrangement, thermal interface, airflow, and operating conditions can influence the component’s temperature. The device must be operated within its specified limits, with cooling designed for the actual circuit conditions. Never assume that a replacement component can operate safely without checking the equipment’s thermal requirements.

When selecting the K40H603 for maintenance or replacement, first inspect the marking on the existing component and compare it with the documented model number. Check the collector-emitter voltage, collector current under the relevant conditions, package, gate requirements, switching characteristics, diode characteristics, and thermal limits. Also check whether the original device is installed as a single switching component or as part of a more complex power stage.

Incorrect component selection can result in improper circuit operation or damage to the semiconductor and surrounding equipment. Components with similar model markings may have different characteristics, while counterfeit, remarked, or incorrectly identified parts may not perform according to the expected datasheet. Purchase and installation decisions should be based on reliable product identification and suitable technical documentation.

For inventory and product identification, the name K40H603 IGBT Power Transistor provides a concise way to identify this component in a collection of electronic parts. Including the associated model number in internal records can help distinguish the component from other IGBTs used in power conversion circuits. Any additional specifications shown in a product listing should be checked against the exact device documentation before publication.

The K40H603 IGBT is relevant to compatible electronic power applications where the documented IKW40N60H3 characteristics meet the circuit requirements. Its high-speed switching design and integrated antiparallel diode are important features of the identified device. However, these characteristics do not mean that the component is suitable for every inverter, welding machine, or power supply. Application compatibility must be assessed individually.

Before installation, disconnect the equipment from its power source and ensure that stored electrical energy has been safely discharged. Power electronic equipment can contain hazardous voltages even after it has been switched off. Installation, testing, and repair should be carried out by a suitably qualified person using appropriate safety procedures. Follow the equipment manufacturer’s instructions and the component datasheet for terminal connections, mounting, and operating limits.

In summary, the K40H603 IGBT Power Transistor is the marking associated with the IKW40N60H3 high-speed switching IGBT. The documented device has a 600V collector-emitter voltage rating, a 40A collector current rating under specified conditions, a TO-247-3 package, and an integrated antiparallel diode. It is intended for compatible power conversion and switching applications. Confirm the complete part identification and relevant specifications before choosing it for a replacement or new circuit design.
