SKKT 106/16 E Semikron Danfoss Thyristor Module

Description

The SKKT 106/16 E Semikron Danfoss Thyristor Module is a power semiconductor component designed for industrial electrical control and power conversion applications. It belongs to the SEMIPACK 1 product series and uses a dual thyristor configuration for controlled switching in compatible electronic circuits. The module is used in applications that require controlled power flow, rectification, and regulation of electrical energy.

The SKKT 106/16 E has a rated current of 106 A and a repetitive peak blocking voltage of 1600 V, according to the manufacturer’s product specifications. These electrical characteristics help identify the module for suitable circuit applications. Actual operating conditions depend on the circuit design, cooling arrangement, temperature, and other requirements specified in the technical documentation.

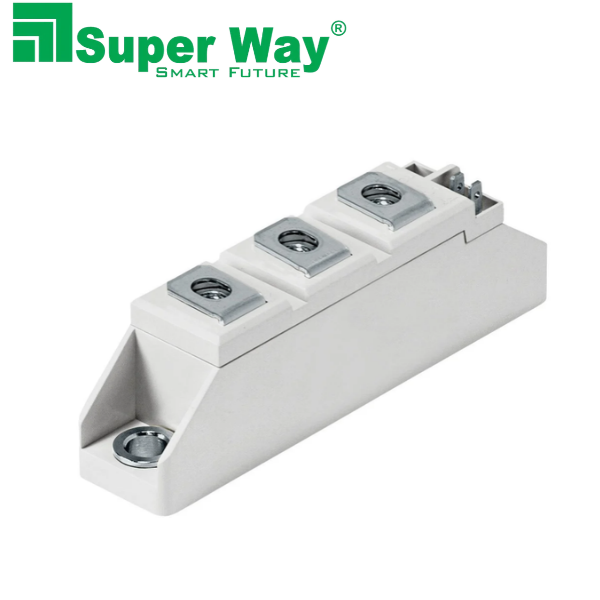

This Semikron Danfoss thyristor module features a compact SEMIPACK 1 housing with dimensions of approximately 93 × 20 × 30 mm. Its package is designed for integration into compatible power-electronic equipment. Before replacing an existing component, the complete model number, terminal arrangement, mounting dimensions, and electrical characteristics should be checked to confirm compatibility.

The module incorporates an aluminium oxide ceramic insulated metal baseplate. This construction supports heat transfer while providing electrical insulation between the semiconductor assembly and the mounting surface. Appropriate thermal management is important in power-electronic equipment, particularly when the component operates under demanding electrical loads. The mounting surface, heatsink arrangement, and installation procedure should follow the manufacturer’s technical instructions.

The SKKT 106/16 E also uses hard-soldered joints as part of its internal construction. These joints form part of the module’s electrical and mechanical assembly. Correct installation and operation within the specified limits are important for maintaining the intended performance of the semiconductor component.

Typical applications include DC motor control, AC motor soft starters, temperature-control systems, and professional lighting-control equipment. In motor-control circuits, thyristors can regulate the flow of electrical power according to the control system’s design. In temperature-control equipment, they can form part of power-regulation circuits used with compatible heating loads. Lighting-control systems may also use thyristor technology to regulate power supplied to suitable lighting equipment.

The SKKT 106/16 E is suitable for consideration in compatible industrial rectifier and power-control assemblies. Its dual thyristor configuration makes it different from modules that combine a thyristor and a diode, even when the model names or physical packages appear similar. Therefore, the circuit topology should be verified before selecting this module for replacement or new equipment.

Superway product identification can be used to describe this semiconductor component for compatible power-electronic applications. When documenting the SKKT 106/16 E, retain the full model number to distinguish it from related modules in the Semikron Danfoss SEMIPACK series. Checking the manufacturer datasheet is important for confirming electrical ratings, terminal connections, gate-control requirements, thermal limits, and mounting details.

The SKKT 106/16 E Semikron Danfoss Thyristor Module is designed for use in suitable industrial control and power-conversion systems. Its 106 A current rating, 1600 V voltage rating, compact SEMIPACK 1 housing, and insulated baseplate are key characteristics for component identification and application planning. Superway product descriptions should retain the correct model designation to support accurate identification of this thyristor module.
