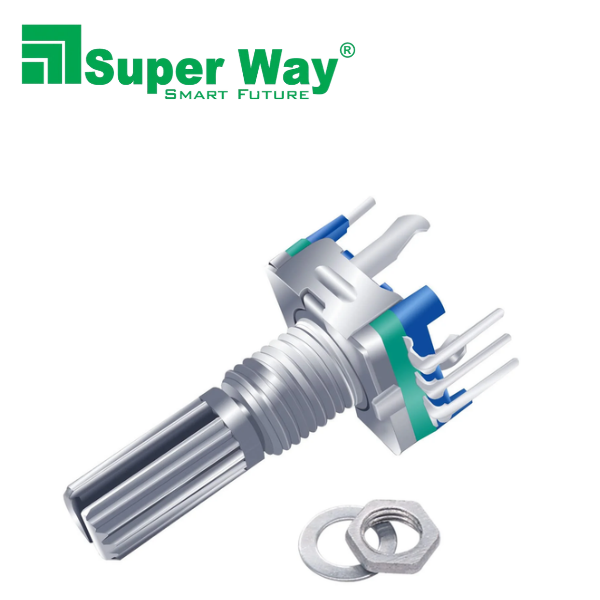

RV9312N0KQ 9mm Rotary Potentiometer

The RV9312N0KQ 9mm Rotary Potentiometer is a compact electronic component designed for adjustable resistance applications. According to the supplied product information, it uses a carbon resistance element and features a metal shaft, a mounting bracket, and three connection pins. Its stated 9 mm size makes it a potential option for compatible electronic assemblies where a compact rotary control is required.

The source page title refers to a “250 Amp Encoder Switch,” but the technical description identifies the component as a single-unit carbon rotary potentiometer. The available information does not verify a 250 A current rating or establish that the component is a rotary encoder. Confirm the exact product identity and electrical specifications with the supplier before purchase.

Key Features

Compact Rotary Design

The component is described as a compact rotary potentiometer. A rotary potentiometer changes resistance when its shaft is turned, allowing it to provide an adjustable input to a compatible electronic circuit. Its actual function depends on the circuit design and the way the component is connected.

Carbon Resistance Element

The supplied description identifies a carbon resistance element. Carbon potentiometers are commonly used in electronic adjustment circuits. The resistance value, tolerance, taper, and electrical rating of this specific model have not been provided, so these specifications should be confirmed before use.

Three-Pin Configuration

The source states that the potentiometer has three pins. In a conventional three-terminal potentiometer, the two outer terminals connect to the ends of the resistive element, while the middle terminal is connected to the movable contact. Verify the actual terminal layout and pin arrangement before wiring this component.

Metal Shaft

The component is described as having a metal shaft for rotary adjustment. The shaft allows the user or a compatible control mechanism to turn the potentiometer. Check the shaft diameter, length, shape, and compatibility with the intended knob or mechanical assembly before installation.

Mounting Bracket

A mounting bracket is included in the supplied description. A suitable bracket can help secure the potentiometer in an assembly or panel. Confirm the mounting dimensions and orientation to ensure that it fits the intended installation.

Vertical Mounting

The source specifies a vertical mounting design. Check the mounting orientation and available space before selecting this part for a replacement or new circuit design.

Applications

Electronic Adjustment Circuits

Rotary potentiometers are used in electronic circuits that require manual adjustment. Depending on the circuit design, a compatible potentiometer may control a signal level or another variable electrical parameter. Confirm the resistance value and electrical characteristics required by the application.

Audio Equipment

Potentiometers are commonly used for volume or signal-level adjustment in compatible audio equipment. However, the suitability of this model for audio applications depends on its resistance value, taper, power rating, and other electrical specifications, which are not provided in the supplied description.

Control Panels

A compact rotary potentiometer may be incorporated into a control panel when its mechanical dimensions and electrical characteristics match the design. The shaft and mounting bracket should be checked for compatibility with the panel and any attached knob.

Electronic Equipment Repair

This component may be considered for repair or replacement work if it matches the original part. Compare the model number, resistance value, shaft dimensions, terminal configuration, mounting style, and electrical ratings before ordering.

Product Specifications

• Model: RV9312N0KQ, as provided in the source
• Component type: Carbon rotary potentiometer
• Size: 9 mm, as stated in the source
• Terminal count: Three pins, as stated in the source
• Shaft material: Metal, as stated in the source
• Mounting: Vertical mounting with bracket, as stated in the source
• Resistance value: Not provided
• Resistance taper: Not provided
• Current rating: Not verified
• Encoder function: Not established by the technical description

Compatibility and Selection

Before purchasing the RV9312N0KQ Rotary Potentiometer, check the required resistance value and compare the physical dimensions with the existing component. The model name and 9 mm size alone are not sufficient to confirm compatibility.

If you are replacing an existing potentiometer, inspect the original part’s markings and wiring arrangement. Verify the shaft dimensions, bracket position, pin spacing, and terminal functions. Also confirm the resistance value and tolerance with the supplier.

The title on the source page refers to a 250 Amp encoder switch, while the technical description refers to a carbon rotary potentiometer. These descriptions do not establish the same component function or rating. Do not use the product in a high-current application based solely on the page title.

Installation and Handling

Switch off and disconnect the equipment from its power source before installation. Follow the circuit diagram and the equipment manufacturer’s instructions when connecting the potentiometer. Incorrect wiring or an unsuitable component can cause circuit malfunction or damage.

Mount the potentiometer securely using the intended bracket. Avoid applying excessive force to the shaft or connection pins. After installation, verify that the shaft turns correctly and that the component operates as expected within the intended circuit.

Conclusion

The RV9312N0KQ 9mm Rotary Potentiometer is described as a compact carbon potentiometer with three pins, a metal shaft, a mounting bracket, and a vertical mounting arrangement. It may be suitable for compatible electronic adjustment applications when its specifications match the circuit requirements.

Confirm the resistance value, electrical ratings, dimensions, and exact product identity with the supplier before ordering. This is especially important because the source page title and technical description provide conflicting indications of the component type.
