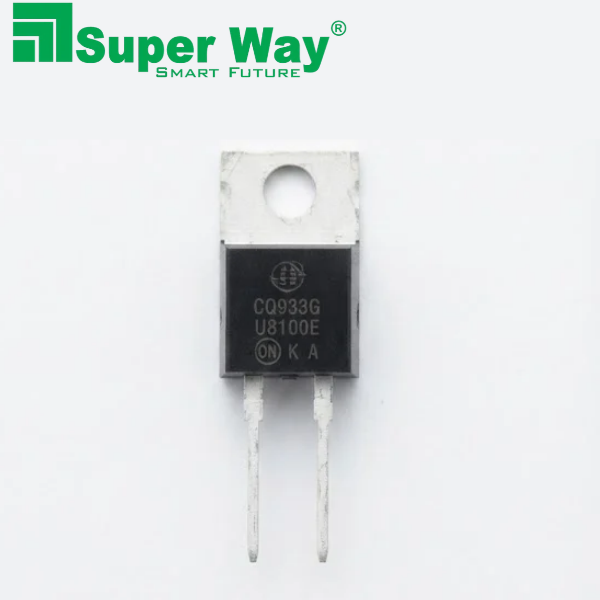

MUR8100E Power Rectifier Diode

Description

The MUR8100E Power Rectifier Diode is an ultrafast semiconductor component designed for rectification and switching applications in electronic power circuits. It is used in circuit designs where controlled one-way current flow and fast recovery characteristics are required.

A rectifier diode allows current to flow primarily in one direction while blocking current in the reverse direction within its operating limits. In switching circuits, the diode must respond to changes in current and voltage as the circuit switches between operating states. Ultrafast rectifier diodes are designed to provide faster reverse recovery than conventional general-purpose rectifier diodes.

The MUR8100E is specified for a maximum repetitive reverse voltage of 1000 V and an average forward current of 8 A under the manufacturer’s stated test conditions. Its maximum forward voltage is specified as 1.8 V at a forward current of 8 A under the specified conditions. These ratings should be interpreted using the datasheet rather than treated as guaranteed performance in every circuit.

The component is supplied in a TO-220-style package for through-hole mounting. Package and terminal configuration should be checked against the datasheet before installation, particularly when replacing an existing diode on a circuit board.

One of the important characteristics of the MUR8100E is its fast reverse recovery behaviour. The manufacturer describes the device family as an ultrafast rectifier series, with recovery-time figures dependent on the relevant datasheet and test conditions. This behaviour can be important in circuits where switching frequency and reverse recovery affect power losses and circuit operation.

The MUR8100E is intended for applications such as switching power supplies, inverter circuits, and freewheeling diode positions. In a suitable circuit, a freewheeling diode provides a current path for an inductive load when the main switching element changes state. Its selection must account for circuit voltage, current, switching behaviour, thermal conditions, and the requirements of the overall design.

Power rectifier diodes may also be used in other compatible power conversion and switching circuits. However, a diode should not be considered suitable for every power supply or inverter simply because its general component type matches the application. The full electrical design and operating conditions must be considered.

In welding machine electronics, rectifier diodes may be used in power conversion sections or other circuits specified by the equipment design. Whether the MUR8100E is suitable for a particular welding machine depends on the original component, circuit requirements, cooling arrangements, and manufacturer documentation. Always compare the replacement with the component originally installed.

The MUR8100E datasheet also specifies a maximum operating junction temperature of 175°C and avalanche energy capability under the manufacturer’s defined test conditions. These details describe device limits under specific conditions; they do not mean that the component can operate safely at every rated limit simultaneously.

When selecting a replacement, verify the complete part number, reverse-voltage rating, forward-current rating, recovery characteristics, package, terminal arrangement, and thermal requirements. A component with a similar name or appearance may have different electrical characteristics and may not be interchangeable.

For product identification and inventory records, retain the full MUR8100E model number. Some listings also identify a Pb-free version using the suffix MUR8100EG. Confirm the exact supplied variant and its datasheet before publishing variant-specific details.

The MUR8100E Power Rectifier Diode is a component for compatible rectification and switching applications. Use the manufacturer datasheet and equipment documentation to establish suitability before selecting it for a replacement or circuit design. Accurate model identification and correct application are important for maintaining the intended operation of power electronic equipment.
