Description

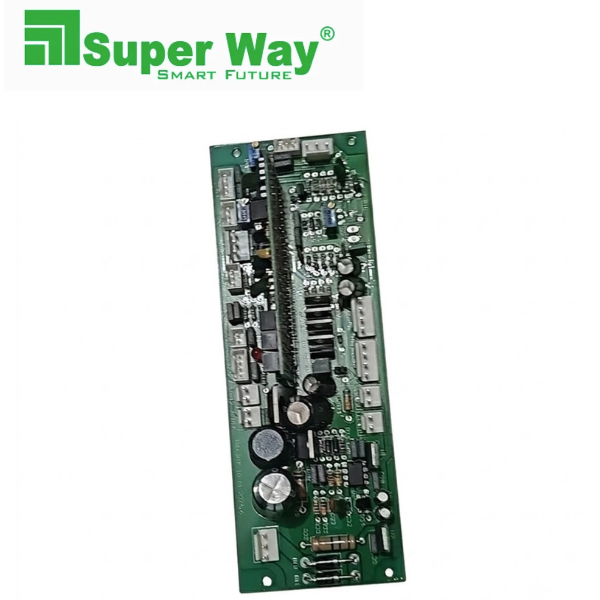

The MOSFET Control Card 300A is an electronic circuit board intended for compatible MOSFET-based power electronic equipment. It is identified for applications associated with a 300A system, but the exact function and operating capability of the card depend on its circuit design and the equipment for which it was developed. Buyers should confirm the original board details and machine compatibility before purchasing.

MOSFET stands for Metal-Oxide-Semiconductor Field-Effect Transistor. MOSFETs are semiconductor devices used for switching and controlling electrical signals or power in electronic circuits. They are found in many types of power supplies, inverter equipment, and welding machine systems. A MOSFET control card may form part of the electronic control arrangement, but the product name alone does not establish whether this board performs gate driving, signal control, protection, or another specific function.

For welding machine repair and maintenance, selecting the correct control card is important. Different machines can use different circuit designs, component arrangements, connectors, and operating requirements. Even when two boards have similar appearances or carry the same current-related designation, they may not be interchangeable. Confirming the exact machine model and original board identification helps reduce the risk of ordering an unsuitable replacement.

The 300A designation is included in the product name, but it should not automatically be treated as a verified continuous output rating for the card or the welding machine. The actual operating capability depends on the complete equipment design, the power stage, cooling arrangements, and the manufacturer’s specifications. Buyers should refer to verified product information before using the number as a technical rating.

The MOSFET Control Card 300A may be relevant to technicians, repair workshops, and businesses that service compatible MOSFET-based welding equipment. If the original control card becomes faulty or damaged, a correctly matched replacement may help with the repair process. The suitability of the card depends on its intended role within the machine and whether its connections and electrical requirements match the original assembly.

Before ordering, inspect the existing board and record any printed model number, part number, or other identifying markings. Compare the available product photographs with the original card and check connector positions, board dimensions, mounting points, and wiring arrangements. If the control card is intended for a particular welding machine, confirm the machine model with the supplier or equipment documentation. The product title alone cannot confirm universal compatibility.

A control card works as part of a larger electronic system. Depending on the equipment design, the board may interact with semiconductor devices, control circuits, sensors, switches, or other electronic assemblies. If a welding machine is experiencing a fault, it is important to determine whether the control card is responsible before replacing it. A technician can inspect the equipment and identify the component that requires attention.

Correct installation is essential when working with power electronic equipment. Disconnect the machine from its power source before handling internal circuit boards. Some equipment contains capacitors that may retain hazardous electrical energy after disconnection. Repair and replacement work should be carried out by a qualified technician who follows the manufacturer’s service instructions and verifies that the equipment is safe to handle.

Incorrect wiring or the installation of an incompatible board may damage the control card or other connected components. Do not rely only on connector shape, wire colour, or a similar appearance to establish compatibility. Confirm the intended connections and electrical requirements using reliable technical documentation. Any testing after installation should follow the manufacturer’s recommended procedures.

For repair businesses and electronic component suppliers, maintaining accurate records of control card models can simplify inventory management and future replacement orders. Keeping the equipment model, original board markings, connector details, and supplier information together can help technicians identify the correct component for repeat repairs. Product photographs can assist with identification, but verified specifications are still necessary when selecting a replacement.

The MOSFET Control Card 300A is intended for customers looking for a MOSFET-related control circuit board for a compatible electronic application. It may be considered for repair, replacement, and maintenance work once the original board and its intended function have been identified. Since control card designs vary between machines, buyers should confirm the precise application rather than assuming that every 300A MOSFET welding machine uses the same board.

At Electropowerway, customers can explore electronic components and welding machine spare parts for different repair and maintenance needs. Before purchasing this MOSFET Control Card 300A, compare the product details with the original component and verify compatibility with the intended equipment. If the exact board function, electrical ratings, or machine compatibility are unclear, contact the supplier for confirmation before ordering or installation. Choosing the correct replacement helps reduce compatibility issues and supports appropriate equipment servicing.
