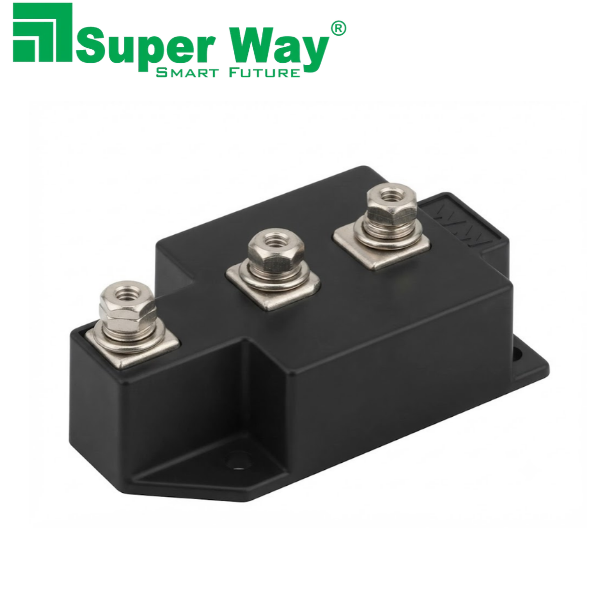

MDD 250-16N1 High Power Diode Module

Description

The MDD 250-16N1 High Power Diode Module is a power semiconductor component designed for rectification and power conversion applications. It belongs to the high-power diode module category and is used in electrical and electronic systems where controlled current paths and rectification are required. Its dual-diode configuration makes it suitable for circuit designs that use two diode elements within a single module. The Superway MDD 250-16N1 product designation identifies this model for component organization and matching.

The MDD 250-16N1 is designed for applications involving high-current power circuits. Its module construction brings the diode elements together in one assembly, allowing them to be incorporated into compatible power electronic equipment. This arrangement can be useful in power supply designs, industrial electrical systems, and other applications that require power semiconductor rectification. The precise role of the module depends on the circuit configuration, electrical requirements, and thermal design of the equipment in which it is installed.

The module has a maximum repetitive reverse voltage rating of 1600 V. This rating is an important consideration when selecting a diode for a power circuit because the reverse voltage experienced by the component must remain within its specified operating limits. Actual suitability depends on the circuit’s voltage conditions, switching behavior, transient protection, and the requirements of the complete system. The Superway MDD 250-16N1 model designation can be used when identifying the component for a particular circuit design or replacement application.

The datasheet specifies an average forward current rating of 290 A per diode under stated test conditions. This rating should not be interpreted as a universal current capacity under every operating condition. Actual current handling depends on factors such as case temperature, heat dissipation, current waveform, cooling arrangements, and the electrical characteristics of the surrounding circuit. Appropriate thermal management and compliance with the manufacturer’s ratings are essential when integrating a high-power diode module into equipment.

The MDD 250-16N1 uses a dual-diode arrangement with three main terminals. The terminal configuration must be checked against the circuit diagram and the manufacturer’s datasheet before installation. Correct terminal identification is important for achieving the intended rectification function and avoiding incorrect electrical connections. The Superway MDD 250-16N1 designation helps distinguish this specific model from other diode modules that may have similar housings but different voltage ratings or internal configurations.

The module supports screw-based mounting, allowing it to be secured to a compatible assembly. Mechanical installation should follow the manufacturer’s mounting requirements, including the specified fastening method and torque. The mounting surface and thermal interface must also be appropriate for the intended application. Correct installation helps maintain the mechanical stability and thermal performance required for reliable operation within the equipment’s design limits.

The specified operating junction temperature range is -40°C to +150°C. This range describes the allowable junction temperature limits under the manufacturer’s specified conditions; it does not mean the module can operate at its maximum current continuously at every temperature. System designers should consider ambient temperature, enclosure ventilation, heatsink performance, thermal resistance, and the heat generated during operation. The Superway MDD 250-16N1 should be incorporated into a thermal design that keeps the semiconductor junction within its permitted limits.

High-power diode modules are commonly used in DC power equipment, power conversion circuits, PWM inverter power supplies, DC motor field supplies, and battery DC power supply systems. The MDD 250-16N1 may be suitable for these types of applications when its electrical ratings, internal diode configuration, and thermal requirements match the intended circuit. Final compatibility should be confirmed using the equipment schematic and the official component datasheet rather than relying on the model number alone.

When selecting this module as a replacement component, verify the complete part number, voltage rating, current requirements, terminal arrangement, mounting dimensions, and cooling provisions. Components that appear similar externally may have different electrical characteristics or connection configurations. Checking these details before installation helps prevent mismatches between the replacement component and the original circuit design.

The Superway MDD 250-16N1 High Power Diode Module is identified by its model number, dual-diode configuration, high-voltage reverse rating, and high-current rectification capability. These characteristics make electrical compatibility and thermal design central considerations in its use. For repair, replacement, or new circuit integration, the component should be evaluated against the original equipment requirements and the manufacturer’s published specifications.
