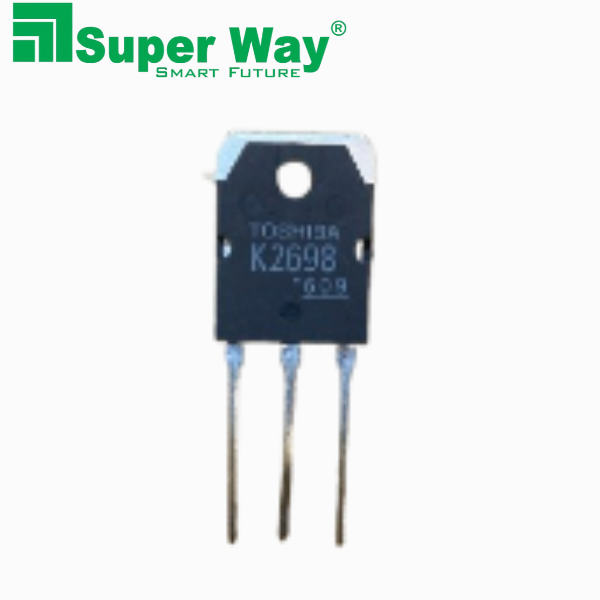

K2698 MOSFET

Description

Product Overview

The K2698 MOSFET is an N-channel semiconductor component used in compatible electronic switching circuits. It is identified by its model number, which helps with component selection, inventory management, and replacement part identification.

The K2698, also designated 2SK2698, is listed by Toshiba as a silicon N-channel MOSFET. It is designed for suitable switching applications, including DC-DC converters, relay drive circuits, and motor drive circuits. Before purchasing, verify the manufacturer marking and exact component variant.

Technical Specifications

The Toshiba 2SK2698 datasheet specifies a drain-source voltage rating of 500V and a continuous drain current rating of 15A under the manufacturer’s specified conditions. The typical drain-source on-resistance is 0.35 ohms, with a maximum specified value of 0.4 ohms under the stated test conditions.

The gate-source voltage rating is ±30V. The component is listed in a TO-3P package. Electrical ratings depend on operating conditions, thermal management, and the manufacturer’s specified limits.

Applications

MOSFETs are semiconductor devices used for electronic switching and control. The K2698 is specified for applications such as DC-DC converters, relay drive circuits, and motor drive circuits.

Its suitability for a particular electronic assembly depends on the circuit design and the required electrical characteristics. Always compare the model number, voltage rating, current rating, package, and pin configuration with the original component before selecting a replacement.

Component Compatibility

The K2698 and 2SK2698 designations are associated with the Toshiba component. However, components carrying similar markings from different manufacturers may have different specifications.

Check the datasheet for the exact supplied part. Confirm the terminal arrangement, mounting requirements, electrical ratings, and thermal limits before use. Do not assume that another MOSFET is interchangeable solely because it has a similar appearance.

Handling and Storage

Semiconductor components should be stored in suitable packaging and protected from electrostatic discharge, moisture, and physical damage where appropriate. Follow the manufacturer’s handling recommendations and use suitable precautions during inspection and installation.

High-voltage electronic components should only be installed or tested by suitably qualified individuals following appropriate electrical safety procedures.

Wholesale Price

For wholesale purchases, confirm the current unit price, available quantity, packaging, and shipping terms with the seller. Pricing may vary according to availability and order quantity. No unverified price or stock quantity is stated here.

About Superway

Superway provides product listings for electronic components and welding machine spare parts. The K2698 MOSFET listing helps customers identify the component by its model number when sourcing electronic parts.

Superway recommends checking the manufacturer marking and datasheet before purchasing a replacement component. Customers should confirm that the supplied part matches their equipment requirements.

For bulk orders, Superway customers should confirm the required quantity, product variant, and current wholesale pricing before placing an order.

Ordering Information

Before ordering, verify the model number, manufacturer, package type, electrical ratings, and required quantity. If the original component includes additional markings, compare them with the supplier’s product information.

Important: Specifications listed here refer to the Toshiba 2SK2698 datasheet. Confirm the exact product variant before installation.
