IGBT Thyristor Diode Module

Description

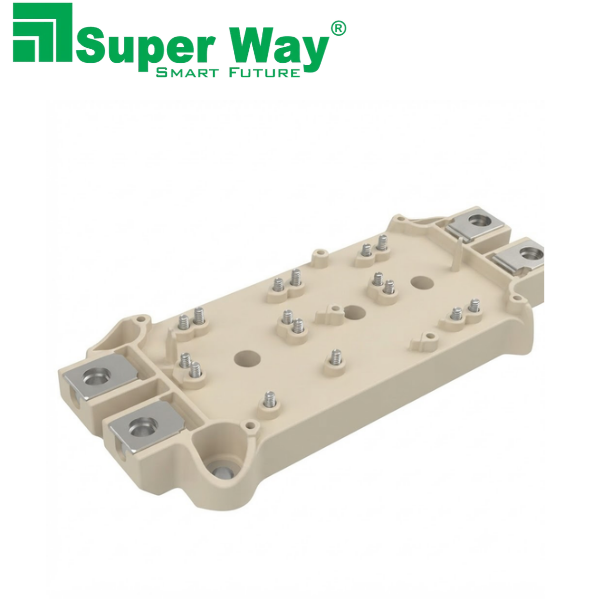

The Superway IGBT Thyristor Diode Module is a power semiconductor component identified by its combined IGBT, thyristor and diode terminology. Such component descriptions relate to semiconductor devices used in electronic power-control systems. The exact internal configuration should be confirmed from the manufacturer’s datasheet before selecting the module for a particular circuit or replacement application.

The supplied product information lists a current rating of 55A and a maximum non-repetitive peak reverse voltage of 700V. These values are useful reference points when identifying the component and evaluating its suitability for a compatible electronic assembly. The specified voltage parameter refers to a particular reverse-voltage condition and should not automatically be treated as the module’s continuous operating voltage. The applicable electrical ratings must be verified using the correct datasheet.

The Superway IGBT Thyristor Diode Module is listed with screw mounting. This mounting arrangement is relevant when checking the mechanical installation requirements of the intended equipment. The mounting dimensions, terminal locations and electrical connections should match the design of the assembly. Correct mounting and suitable thermal management are important considerations when installing power semiconductor components.

Power semiconductor modules are used in systems that require electrical switching, rectification or power conversion, depending on their internal circuit arrangement. In industrial equipment, different semiconductor technologies can perform different functions within the same power-electronic system. The specific role of this module depends on its internal construction and the circuit for which it was designed. Its precise application should therefore be established from verified manufacturer documentation rather than inferred from its product title alone.

The supplied information also lists a power value of 10 kVAR. Because kVAR is a unit of reactive power, this figure should be confirmed against the original manufacturer’s specifications before being interpreted as a module power rating. Electrical parameters should always be understood in the context of the measurement conditions and intended application.

The product listing identifies the brand as Semix. The exact manufacturer and product identity should be checked against the component markings and technical documentation before making manufacturer-specific claims. The supplied operating-temperature entry of -25°C also requires clarification because it may represent a minimum temperature rather than the complete operating-temperature range.

The Superway IGBT Thyristor Diode Module can be identified using its product description, listed 55A current rating, 700V maximum non-repetitive peak reverse voltage and screw-mounting arrangement. These details help with initial component identification, but they are not a substitute for a verified datasheet. Before installation, confirm the semiconductor configuration, electrical ratings, terminal layout, mounting requirements and thermal limits.

Accurate identification is particularly important when replacing a component in an existing power-electronic assembly. Modules with similar external appearances may have different internal circuits and electrical characteristics. The Superway module should only be selected when its verified specifications correspond to the requirements of the intended equipment.
