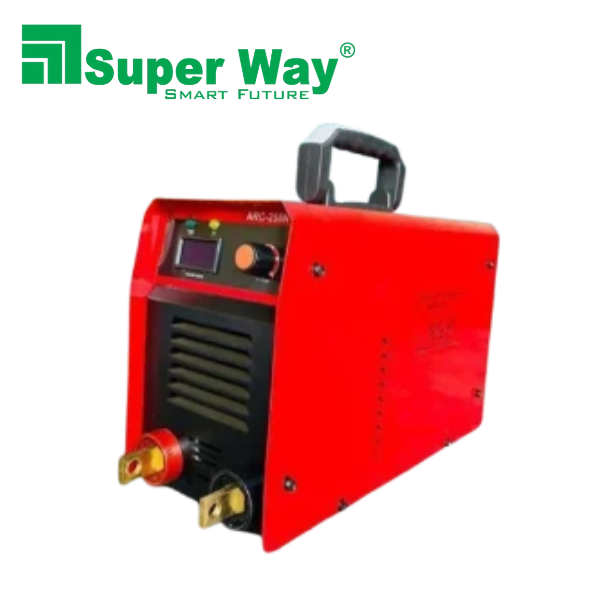

ARC-258 Single Card IGBT Welding Machine

Product Overview

The ARC-258 Single Card IGBT Welding Machine is an inverter-based welding machine designed for welding applications. It features a single-card IGBT configuration and a metal body. According to the supplier’s description, the machine combines inverter technology, arc starting functions and protective features to support reliable welding performance.

The machine is described as suitable for professional welding work across different industries, including construction, automotive, manufacturing and maintenance. Its intended performance characteristics include a stable welding arc, reduced spatter, low operating noise and efficient electricity consumption.

Actual welding performance depends on the machine’s verified electrical specifications, electrode selection, material thickness and operating conditions. Buyers should confirm the complete technical specifications before choosing the machine for a particular job.

Single-Card IGBT Technology

The ARC-258 uses a single-card IGBT configuration. IGBT stands for Insulated Gate Bipolar Transistor, a semiconductor device used in power electronics. In inverter welding machines, IGBT-based circuits help control electrical power supplied to the welding process.

The single-card design identifies the machine’s control and power-electronics arrangement. The precise circuit layout and internal functions depend on the manufacturer’s design.

This configuration is intended to support the machine’s welding operation, but detailed information about the IGBT rating, switching frequency, control circuit and internal components has not been provided. These specifications should be verified with the supplier if they are important for purchasing or servicing decisions.

Inverter Technology

The supplier identifies inverter technology as a key feature of the ARC-258. Inverter-based welding equipment uses electronic power conversion to regulate the electrical output used for welding.

The supplier states that this technology supports efficient operation and improved welding performance. The machine is also described as having low electricity consumption. However, no numerical efficiency rating or power-consumption measurement is provided, so actual energy use will depend on the machine’s specifications, workload and operating conditions.

Arc Starting and Arc Force Functions

Arc starting is an important function in welding equipment because it helps establish the welding arc between the electrode and the workpiece. The supplier lists advanced arc starting and arc force functions as features of this model.

Arc force control can help influence welding current behaviour when the arc length changes, depending on the machine’s control design. These functions are intended to support a more manageable welding process.

The exact adjustment range and operating behaviour of the ARC-258’s arc force and starting functions have not been specified. Refer to the user manual for details about available controls and their recommended settings.

Stable Welding Arc

The supplier describes the ARC-258 as providing a stable arc with minimal spatter and low noise output. A stable arc can help the operator maintain consistent welding conditions when the machine is used within its intended operating range.

Spatter refers to small droplets of molten material that may be expelled during welding. The amount of spatter depends on several factors, including electrode type, current setting, material preparation and operator technique.

The machine’s stated design aims to support good welding quality, deep penetration and strong welds. These results cannot be guaranteed for every application and depend on correct setup, suitable consumables and appropriate welding practices.

Protective Functions

The ARC-258 is described as having automatic protection against overvoltage and overcurrent. These protective functions are intended to help safeguard the machine when electrical conditions exceed its supported operating limits.

The supplier also states that the machine automatically balances itself when voltage fluctuations occur. The exact acceptable input-voltage range and response characteristics have not been supplied.

Protective functions should not be treated as a substitute for correct installation, a suitable power supply or proper operating procedures. Check the manufacturer’s manual for input requirements, protection indicators and recommended troubleshooting steps.

Electrode Compatibility

The supplier states that the machine is suitable for various types of basic welding rods. However, a complete list of supported electrode types, diameters and current ranges is not provided.

Before using a particular electrode, check the electrode manufacturer’s recommendations and confirm that the welding machine supports its required current. Using suitable consumables and correct settings helps achieve the intended welding results.

Do not assume compatibility with every electrode simply because the machine is described as versatile. Confirm the supported electrode specifications before beginning a project.

Metal Body Construction

The product name identifies this version as a metal-body model. The enclosure provides the physical structure for the machine and houses its internal electrical components.

For welding equipment, the body design, ventilation arrangement and protection against workshop conditions can influence practical use and maintenance. The supplier has not provided details about the metal type, enclosure thickness, ingress protection rating or overall dimensions.

Keep ventilation openings clear and follow the manufacturer’s instructions for cleaning, inspection and storage. Do not operate the machine if its enclosure, cables or electrical connections are damaged.

Applications

The ARC-258 is presented as suitable for welding tasks in several professional settings, including:

• Construction and fabrication work
• Automotive repair and maintenance
• Manufacturing and workshop applications
• General maintenance tasks
• Other compatible welding operations

The supplier’s application list also mentions the upholstery industry. Because this application is unusual for a welding machine, buyers should confirm the intended use directly with the supplier if it is relevant to their requirements.

The suitability of the ARC-258 for a particular job depends on its verified output range, duty cycle, supported electrodes and the materials being joined.

Operation and Maintenance

Before operating the ARC-258, read the manufacturer’s instructions and confirm that the available electrical supply matches the machine’s requirements. Inspect the power cable, electrode holder, work clamp and other connections before use.

Use suitable welding protective equipment and work in a properly prepared area. Keep combustible materials away from the welding zone and ensure appropriate ventilation. Electrical installation, inspection and repairs should be handled by qualified personnel.

Routine maintenance should follow the manufacturer’s recommendations. Keep air passages clear, inspect cables and connectors regularly, and stop using the machine if abnormal operation or damage is observed.

Technical Specifications to Confirm

The available product description does not provide a complete technical datasheet. Before purchasing, request confirmation of the following details:

• Rated input voltage and input frequency
• Welding current adjustment range
• Rated output voltage
• Duty cycle
• Supported electrode diameters
• Rated input power and efficiency
• Machine dimensions and weight
• Supplied accessories and warranty terms

These specifications are important for determining whether the machine matches the intended welding workload and available power supply.

Conclusion

The ARC-258 Single Card IGBT Welding Machine is a metal-body inverter welding machine described as having arc starting and arc force functions, a stable arc, overvoltage and overcurrent protection, and automatic response to voltage fluctuations.

It is presented for professional welding and maintenance applications. Before ordering, confirm the complete technical specifications, supported electrodes, duty cycle and input-power requirements with the supplier. Correct selection, safe operation and regular maintenance are important for dependable welding performance.
