224J-100V Capacitor

Description

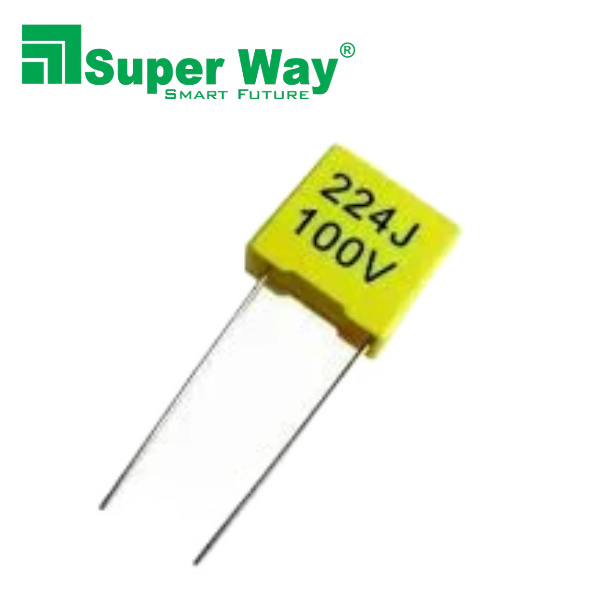

224J-100V Polyester Film Capacitor

The 224J-100V Capacitor is a polyester film capacitor designed for use in compatible electronic circuits. It features a box-type construction and is suitable for applications where the required capacitance and voltage ratings match the circuit requirements.

Capacitance and Voltage

The marking 224J indicates a capacitance of 220 nF, equivalent to 0.22 µF. The letter J generally represents a capacitance tolerance of ±5%. The specified voltage rating is 100V DC.

Polyester Film Construction

Polyester film capacitors use a film dielectric to provide capacitance in electronic circuits. Their compact box-type design supports circuit board installation where the component’s dimensions and lead spacing are compatible.

Electronic Applications

This capacitor may be used in coupling, decoupling, timing, and filtering circuits, depending on the circuit design. It can be considered for electronic equipment repairs and projects requiring a matching capacitance, voltage rating, and tolerance.

Selection and Compatibility

Before replacing an existing capacitor, verify the capacitance, voltage rating, tolerance, physical dimensions, and lead spacing. The operating voltage must remain within the component’s rated limits.

The 224J-100V Capacitor is intended for electronic applications that require a 0.22 µF polyester film capacitor rated at 100V DC. Check the actual component markings and manufacturer specifications to confirm compatibility with your application.
